Arith Sumn
Aus ExpeccoWiki
Inhaltsverzeichnis |

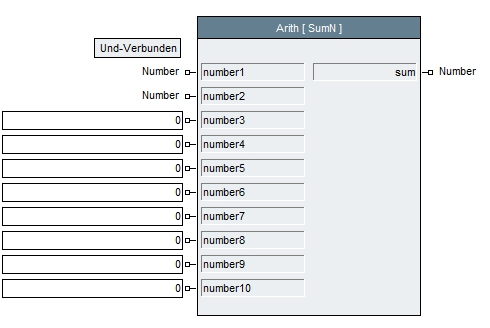

Schema
Minimum the first 2 inputs must be connected and both must have received a value for the action to trigger ("and" input behavior)
Operation
This block returns the sum of all given numbers.
Automatic Type Conversion
The block allows for mixed mode arithmetic. This means that all combinations of Float, Double, Integer, LargeInteger and Fractional numbers are allowed as input.
Depending on the input type(s), the output number is generated as:
| in1 | in2 | out |
| Integer | Integer | Integer (1) |
| Integer | Float / Double | Float / Double |
| Integer | Fraction | Fraction (2) |
| Fraction | Fraction | Fraction (2) |
| Fraction | Float / Double | Float / Double |
| Float / Double | Float / Double | Float / Double |
Notes:
(1) Integers are not limited to a 32bit range. If the result does not fit into a smallInteger, a largeInteger representation with an arbitrary number of digits is automatically choosen (32, 64, 96, 128... bits).
(2) If the fraction can be reduced to an integral value, an Integer is returned (i.e. 6/3 will be reduced to 2)
Revisions
This block has been in the Standard Library since 0.1.
